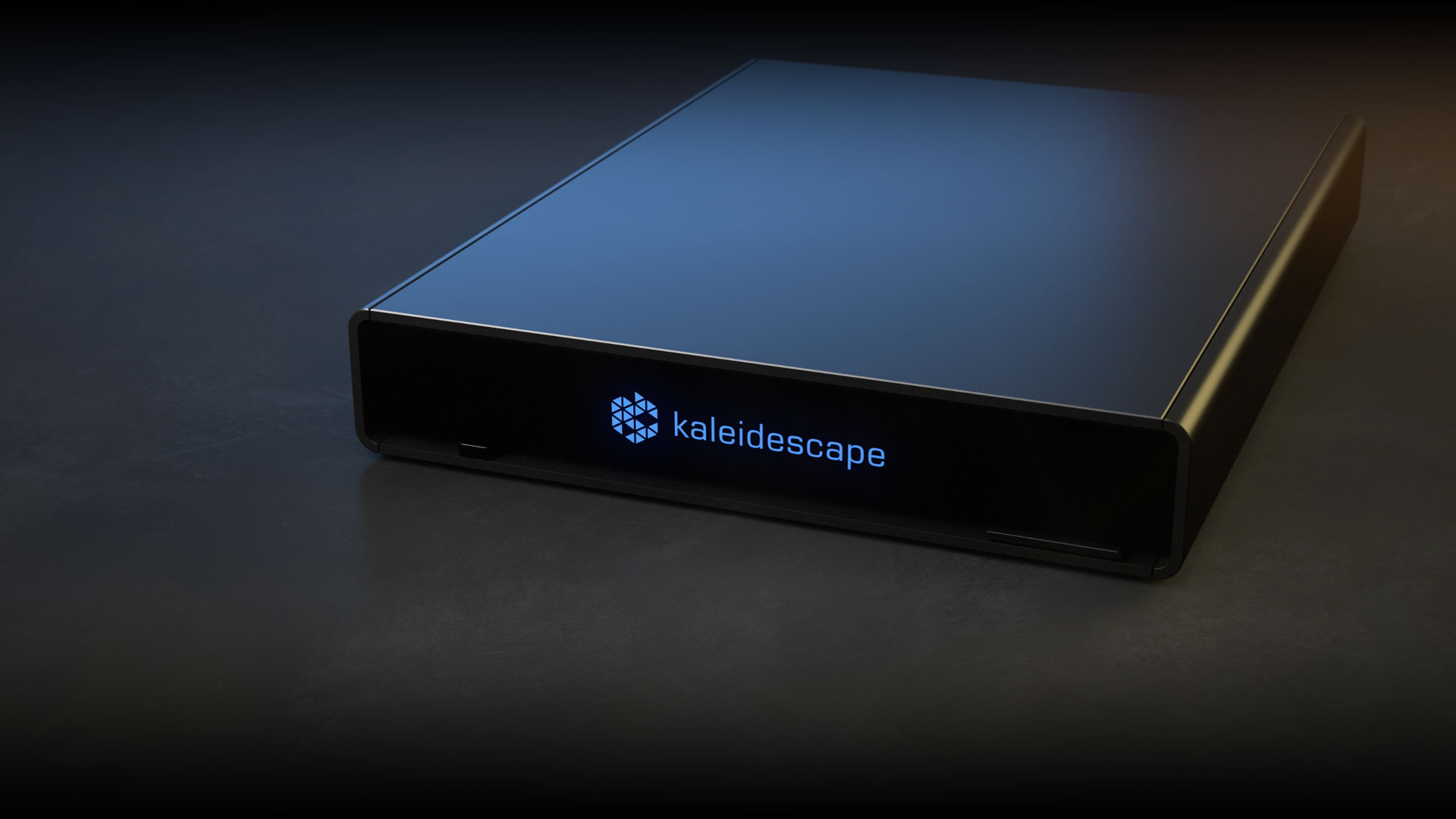

Front view of Strato VStrato V Movie Player Awards

Strato V Movie Player

The next generation of movie player technology. Providing 4K Dolby Vision playback with lossless audio decode, Strato V works on its own or as a part of a larger Kaleidescape system.
  • Reference video for every 4K display. SDR, HDR10, and now Dolby Vision.
  • Lossless spatial audio. Clear dialog and immersive sound effects.
  • Standalone. An entry-level Kaleidescape system that works on its own.
  • Scalable. Add a server for more movies and whole-house entertainment.
  • Ultimate performance. New electronics and grounding topology for audiophiles.
PLAY VIDEO
FIND A DEALER
BUY ONLINE

Visionary

Uncompromising picture quality. Strato V plays 4K movies in standard dynamic range, HDR10, and Dolby Vision with superb upscaling of HD and SD quality content to 4K resolution.
Movie bitrates up to 100 Mbps. Kaleidescape movies are high bitrate and downloaded to local storage for uninterrupted, flawless playback, unlike streaming services that are limited by internet infrastructure. Learn more.
Dolby Vision and Dolby Atmos
DTSX

Superior Sonics

Lossless audio with passthrough and player-side decode maximizes sound quality with a range of downstream components. Supports multichannel and spatial audio codecs including Dolby Atmos, DTS:X, Dolby TrueHD, and DTS-HD Master Audio.

Standalone System

When standalone, Strato V stores approximately 10 reference 4K movies on an internal, solid-state drive. Featuring a new streamlined interface, Strato V is optimized for navigating a small movie library.
Strato V can download a Kaleidescape 4K movie in as little as 10 minutes over gigabit Ethernet, during movie playback, without sacrificing performance. Downloads become a candidate for automatic deletion 48 hours after playback, making room for more movies.
Iconic Kaleidescape Covers View
Grouped Strato V and Servers

Immense scale

An investment that grows with you. Want room for more movies or players in additional rooms? Unlock the full Kaleidescape experience by grouping Strato V with Terra Prime movie servers. Any number of Strato V movie players can be grouped into a system, with up to four servers per system.
Grouping with a server activates the iconic Kaleidescape covers view and list menus for navigating large movie libraries.
Iconic Kaleidescape Covers View
Kaleidescape List View

State of the Art

Exploded view inside Strato V
Mobile app example screen

Control options

Our intuitive mobile app, IR remote, or your home automation system (e.g. Josh.ai, Crestron, Control4, Savant) easily navigate the onscreen interface.

Exclusive

Your ticket to the Kaleidescape movie store with access to thousands of movies. The world’s only digital movie provider with lossless audio and full reference video quality.
Take a tour.
Buy or Rent* from the mobile app on iOS and Android, or any popular browser.
Early Release* and Premium Rental* while still in theatres.
*Subject to availability. Studio dependent.
Mobile app and covers view

Elevated installation

Kaleidescape rack shelves and wall mount solutions are available for a custom install.
Wall mount
1U single rack mount1U double rack mount
Single and double rack mount
Find a Dealer
Buy Online
Rear view of the Strato V
Technical Details & Specifications
DIMENSIONS
  • 7.87in x 1.52in x 10.0in (W x H x D)
    (20.0cm x 3.9cm x 25.4cm)
WEIGHT
  • 4.2lb (1.91kg)
POWER
  • Max consuption: 9W
  • Typical: 7.5W
  • High power standby: 4.5W
  • Lower power standby: 0.50W
  • External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground
NETWORK
  • Gigabit Ethernet (1000 Base-T)
OTHER CONNECTION
  • USB 3.0 (reserved)
  • Chassis GND connections (X2)
CONTROL
  • Kaleidescape remote included
  • Front-panel IR receiver window
  • IR input (1/8in mini plug)
  • Kaleidescape control protocol over Ethernet (supported by Josh.ai, Crestron, AMX, Control4, Savant, the Kaleidescape apps, and other apps & control systems)
  • Lutron RA3 and HomeWorks control over Ethernet
ENVIRONMENT
  • Operating: 41 to 95°F (5 to 35°C)
  • Storage: -4 to 140°F (-20 to 60°C)
  • Relative humidity: 20 to 80% (operation) 5 to 90% (storage)
  • Maximum operating altitude: 10,000ft (3,048m)
  • Heat output: 31 BTU/hr (9W) max
  • Airflow: 5 CFM (8.4 m3/hr) max
FAN NOISE
  • Silent in most installs, 17dB(A) when downloading in hot environments
VENTILATION
  • Minimum 1in (2.5cm) space at the front
  • Minimum 2in (5cm) space at the rear MOUNTS (sold separately)
MOUNTS (sold separately)
  • Rack shelf with faceplates is available for mounting 1 or 2 (centered or side-by-side) Strato V players in a 19in rack, 1U space
  • Wall mount available for mounting behind TV displays
CERTIFICATIONS
  • CSA 62368-1
  • IEC 62368-1
  • FCC CLASS B
  • CE
  • RoHS Compliant
VIDEO OUTPUT
  • HDMI 2.1
  • HDCP 2.3 copy protection
VIDEO DISPLAY FORMATS
  • Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p
  • Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only
  • Color spaces: BT.2020, BT.709, BT.601
  • Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable
  • HDR: Dolby Vision (standard and low-latency) and HDR10 (SMPTE ST 2084, 2086)
AUDIO OUTPUTS
  • HDMI 2.1 (combined with video)
  • Digital (coaxial RCA and TOS-link connectors)
AUDIO FORMATS (HDMI Connector)
  • Dolby Atmos
  • DTS:X
  • Dolby TrueHD
  • DTS-HD Master Audio
  • Dolby Digital Plus
  • DTS-HD High Resolution Audio
  • Dolby Digital
  • DTS Digital Surround
  • Dolby MAT PCM
  • PCM (up to 7.1ch, 96kHz/24-bit)
AUDIO FORMATS (Coaxial RCA and TOS-link connectors)
  • PCM (2ch, up to 96kHz/24-bit)
STORAGE
  • Standalone: Internal 960GB SSD (available storage for ~24hrs of 4K content)
  • Grouped: Strato V can also access content stored on a Terra when connected and grouped via local network
MEDIA
  • Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality
