Mini Unit Rack Shelf Installation

IMPORTANT: Mini units rely on passive cooling, so they must be installed in a well-ventilated area. Ensure the rack setup allows for adequate airflow and that the units are positioned away from heat-generating equipment.

Single Unit Installation

1. Place the mini unit upside upside down on a soft, clean surface.

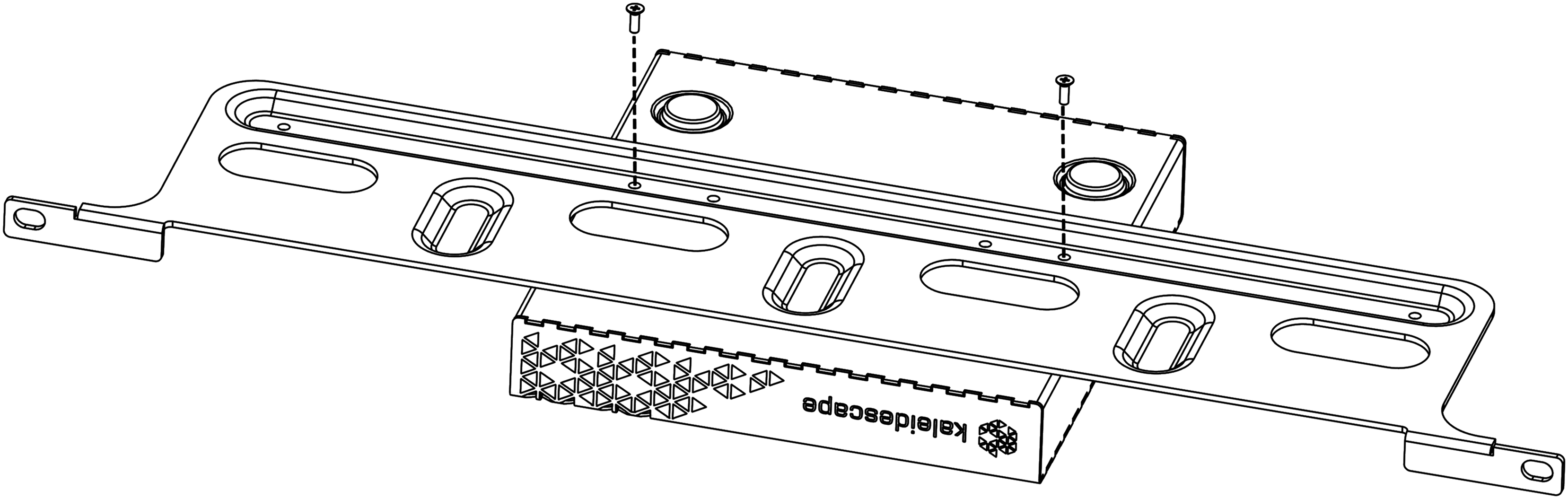

2. Place the rack shelf centered over the unit. Align the two rack mount holes with the two mounting holes found between the front and rear feet. Install two of the provided screws to secure the unit to the shelf. Do not overtighten.

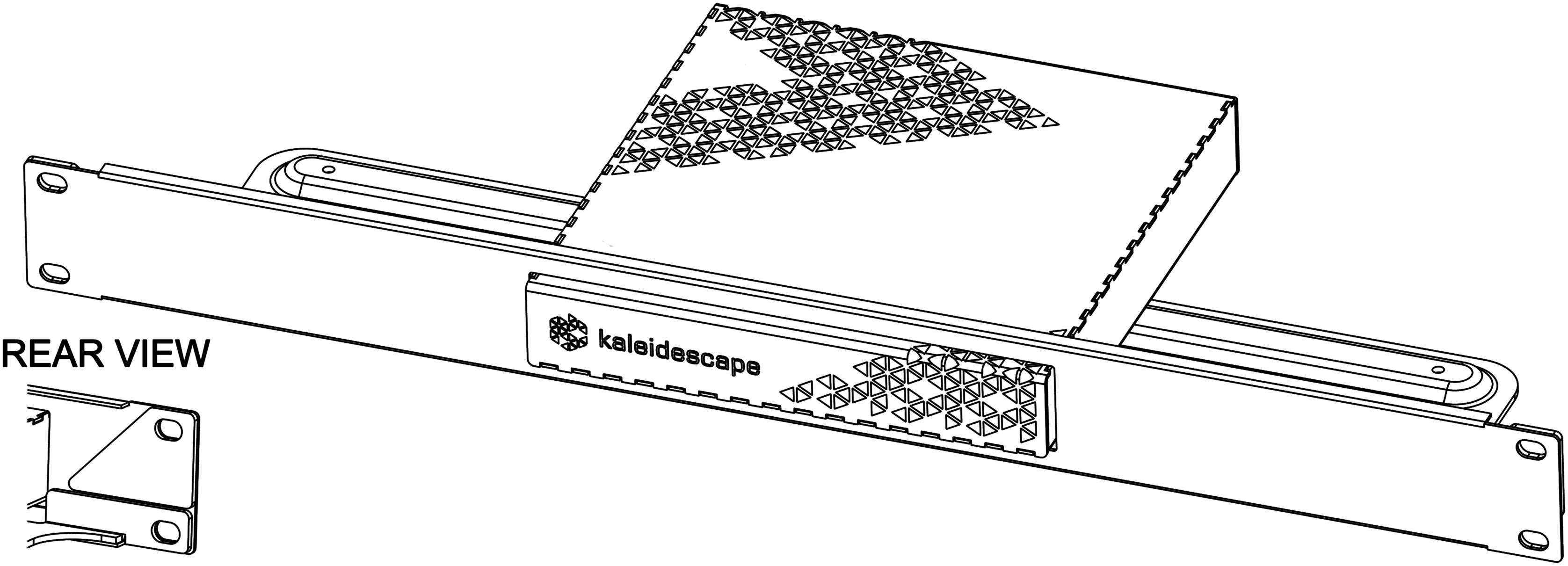

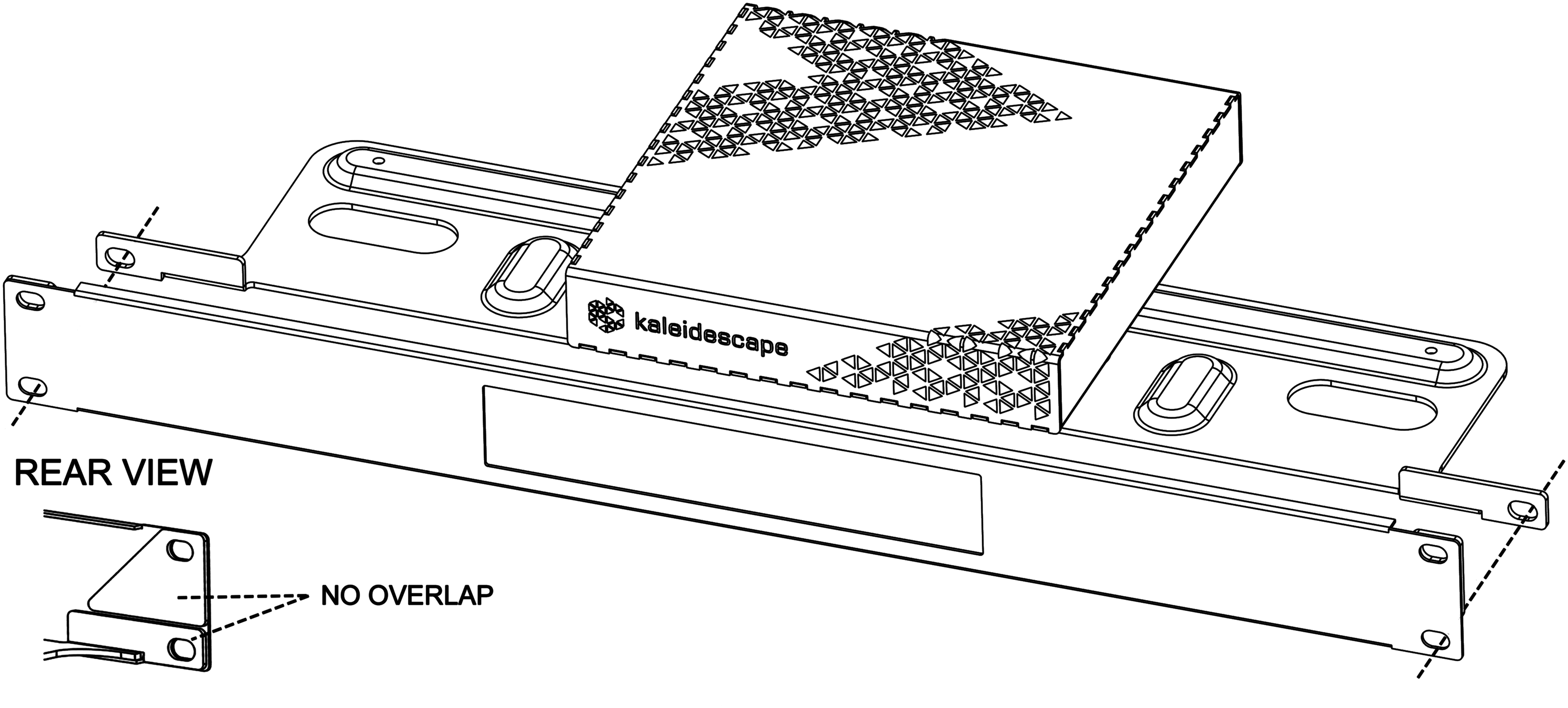

3. Carefully flip the shelf and mini unit. Place the single-opening fascia in front of the unit and slide into position. Make sure the side tabs of the shelf and front panel reinforcements do not overlap as shown in the rear view below.

4. Ready to install. This panel is not firmly attached until the shelf is installed in the rack.

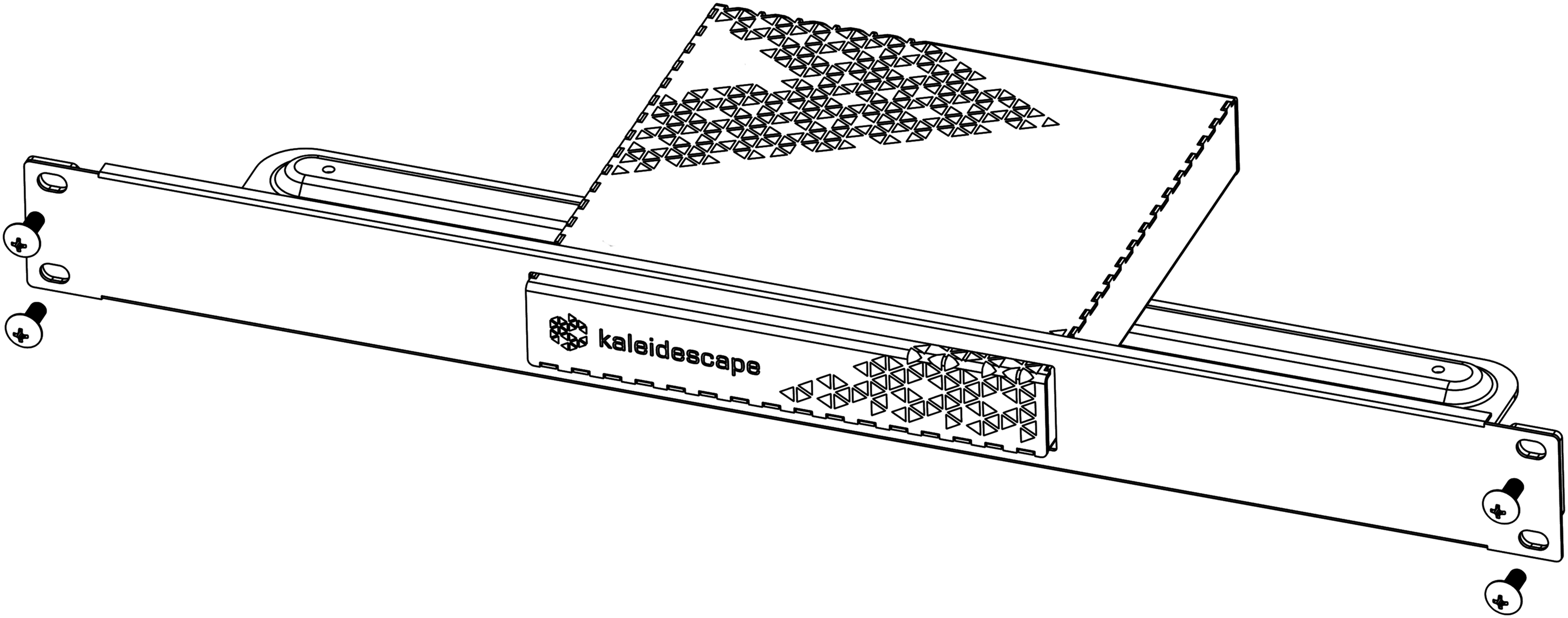

5. While firmly holding the fascia to the rack shelf, install in the rack.


Dual Unit Installation

1. Place two mini units upside down on a soft, clean surface.

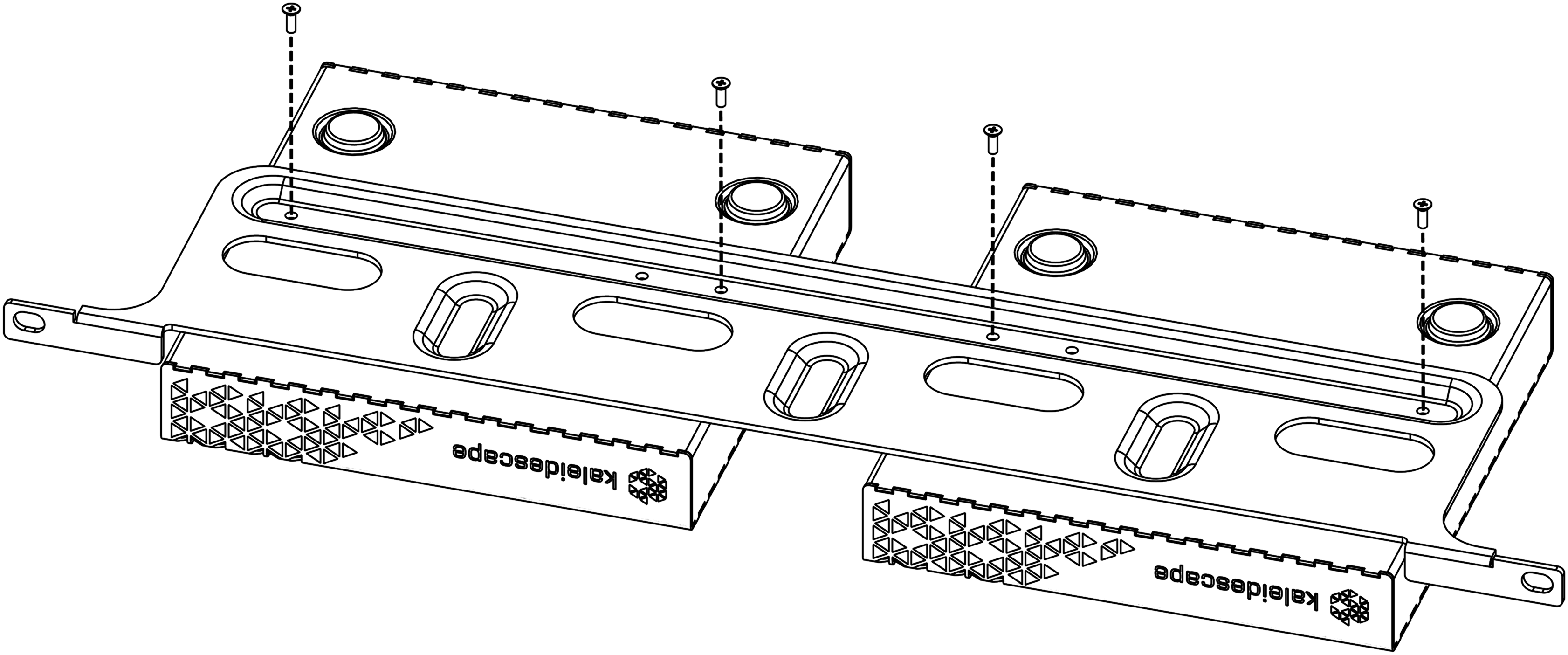

2. Place the rack shelf centered over the units. Align the rack mount holes with the two mounting holes found between the front and rear feet on each unit. Install two of the provided screws per unit to secure the mini units to the shelf. Do not overtighten.

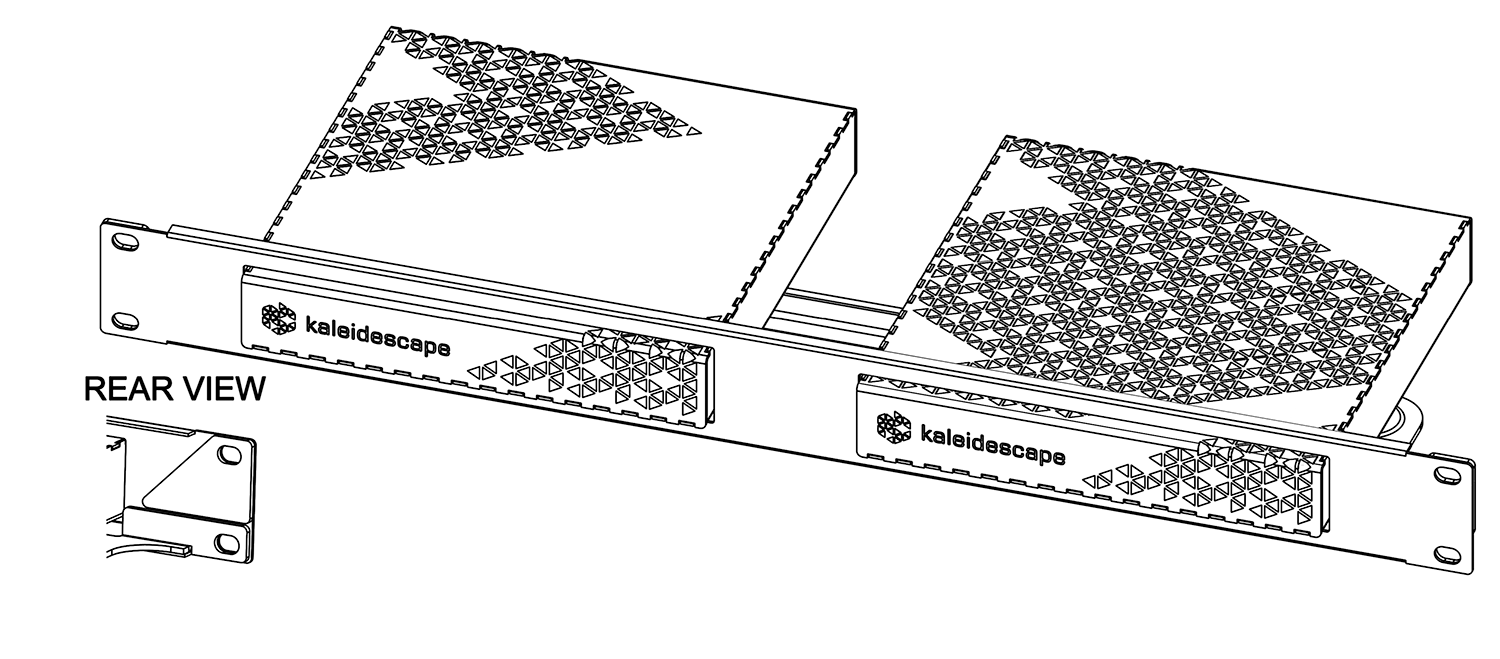

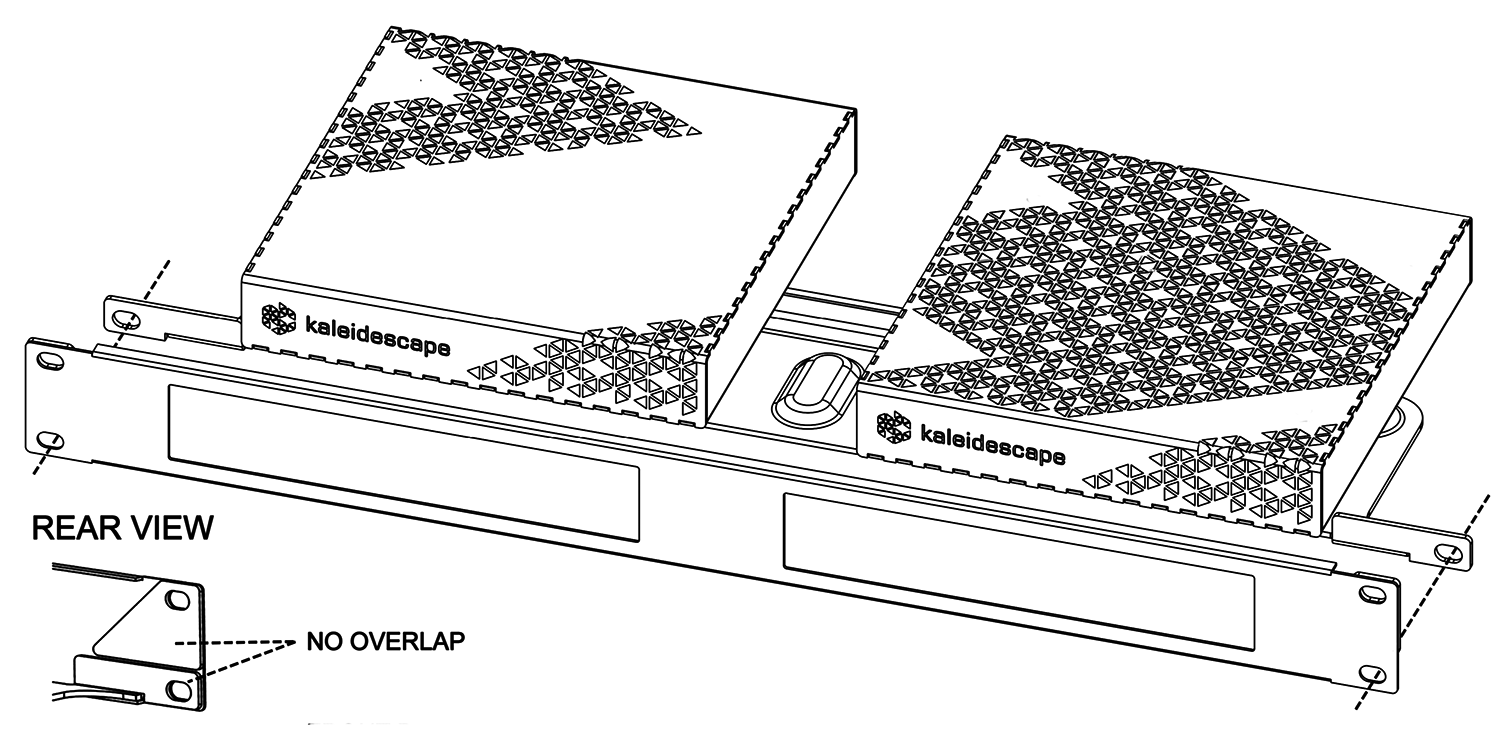

3. Carefully flip the shelf and mini units. Place the dual-opening fascia in front of the units and slide into position. Make sure the side tabs of the shelf and front panel reinforcements do not overlap as shown in the rear view below.

4. Ready to install. This panel is not firmly attached until the shelf is installed in the rack.

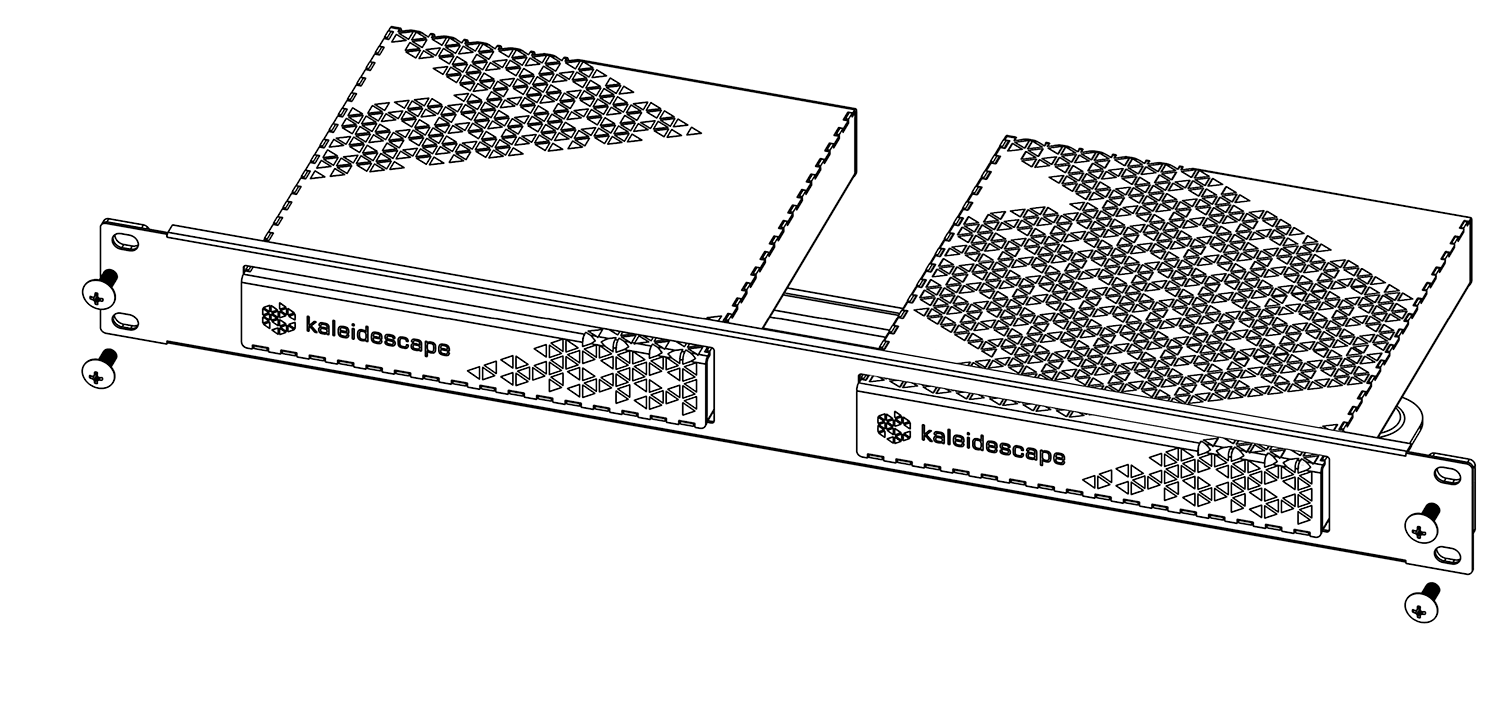

5. While firmly holding the fascia to the rack shelf, install in the rack.
