Wall Mount Installation of Terra Prime (Compact), Terra (Compact), Strato V, Strato C, Strato E, Strato M, and Mini Terra Prime

Before assembling, use the mount plate to mark your drill locations. Mount to wooden studs when possible, otherwise, use the wall anchors provided (3/16” drill size). Zip tie mount to a Versaplate.

1. Place the player or server upside down on a soft and clean surface.

2. Use the included size #1 Philips screwdriver to remove the two frontmost side screws from the bottom. Strato E/M and Mini Terra Prime do not have these screws.

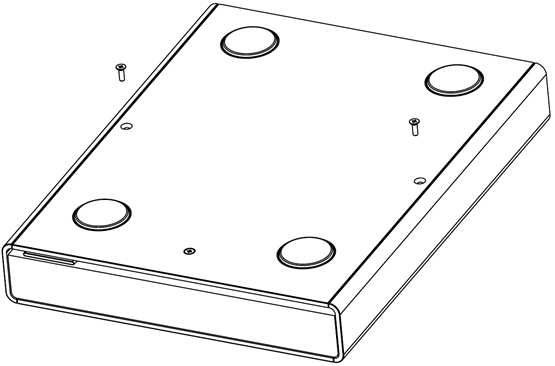

   Strato V & Strato C

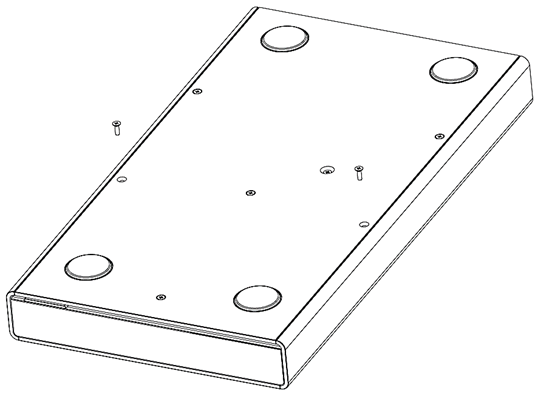

   Terra Prime (compact) and Terra (compact)

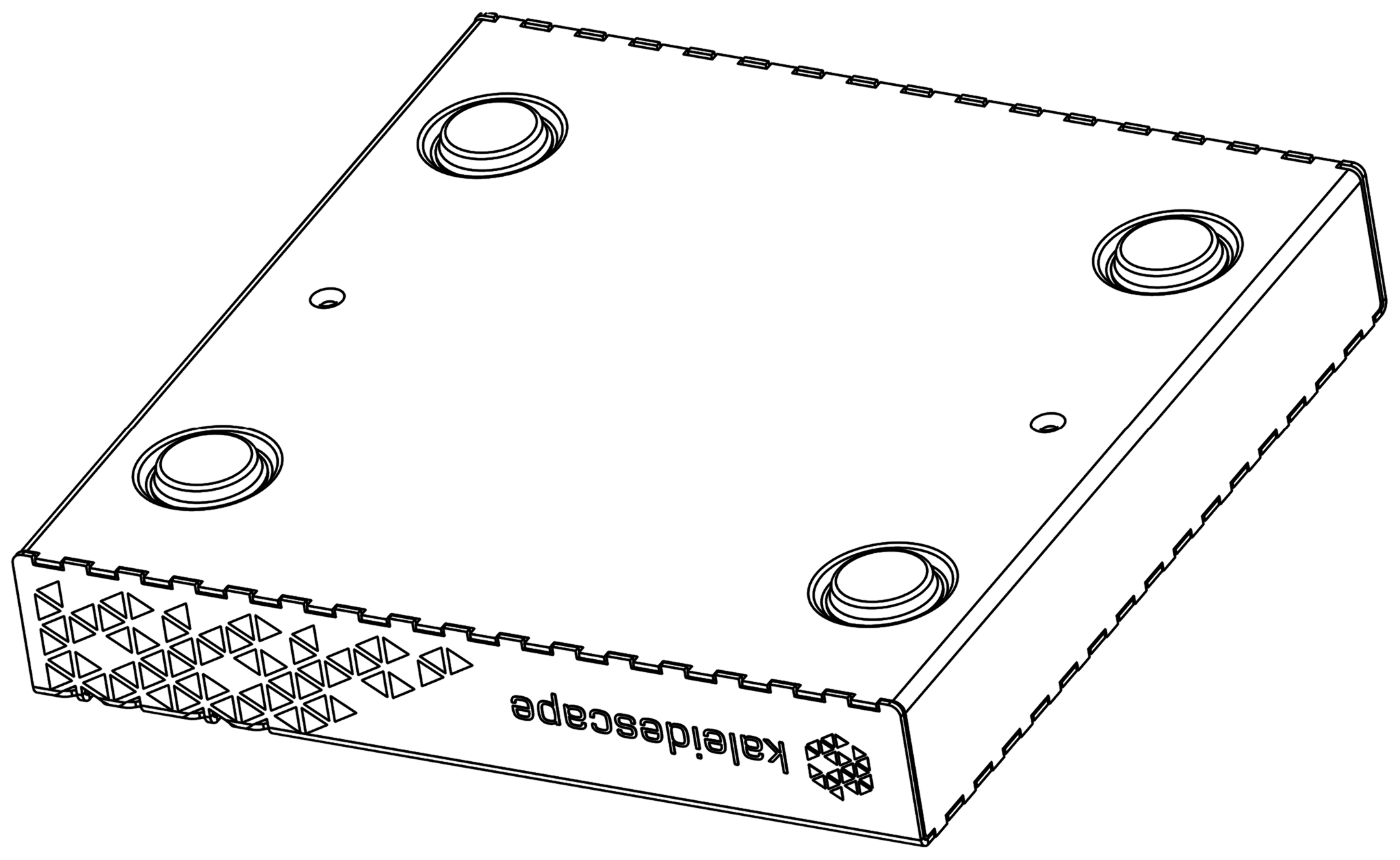

   Strato E and Strato M, Mini Terra Prime



3. Using the provided M2.6x8mm screws, fasten the mount plate as shown below. Be careful not to strip the screw heads by overtightening. Strato E/M and Mini Terra Prime uses the inside set of mounting holes. The other units use the outside set.

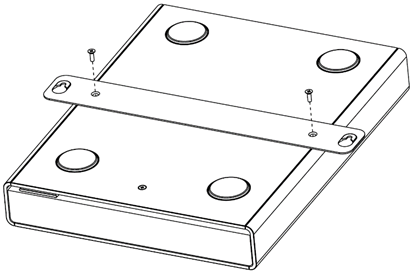

   Strato V & Strato C

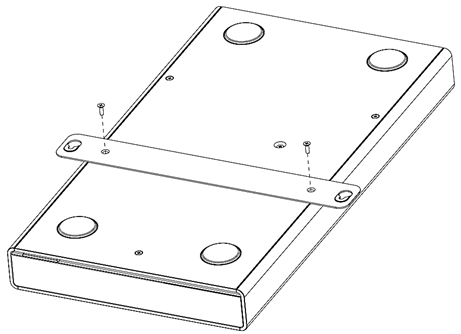

   Terra Prime (compact) and Terra (compact)

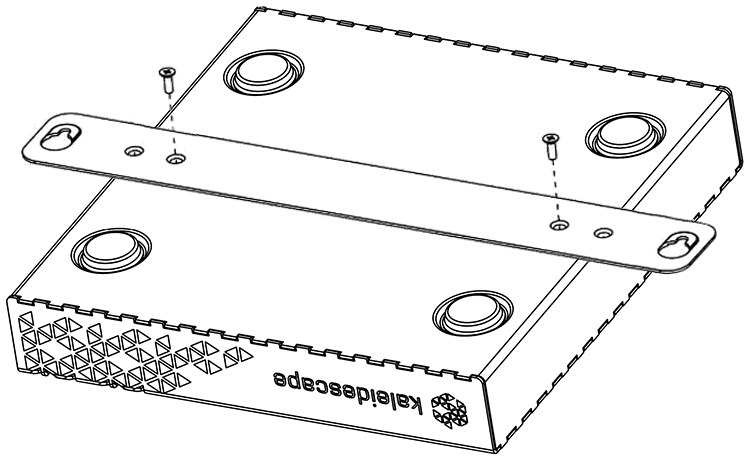

   Strato E and Strato M, Mini Terra Prime



4. Firmly mount to the wall using the #6 screws included in the kit. Mount in a recommended orientation (see below).

Recommended Orientations

Point Strato V, Strato C and the compact Terra servers with the front panel to the ground for best cooling. Pointing the front panel to the left, right, or an angle in between is also supported.

*Front panel pointing to the ceiling, or angled upward, is not recommended because the unit will run hotter.

There are no restrictions on wall mounting orientations for Strato E/M or Mini Terra Prime.

**Do not mount upside down on a ceiling or overhang.

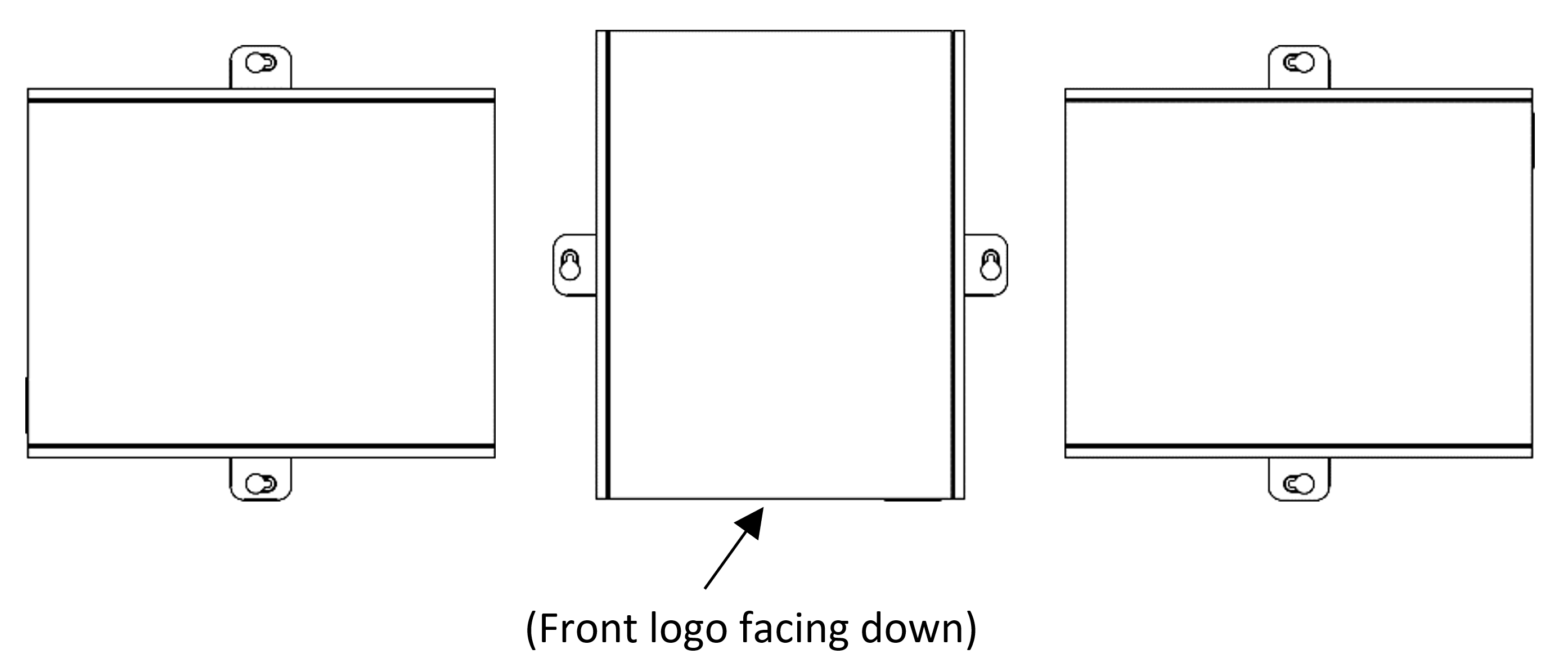

Supported mount orientations for Strato V, Strato C and the compact Terra servers (and angles in between):

Supported mount orientations (and angles in between):
